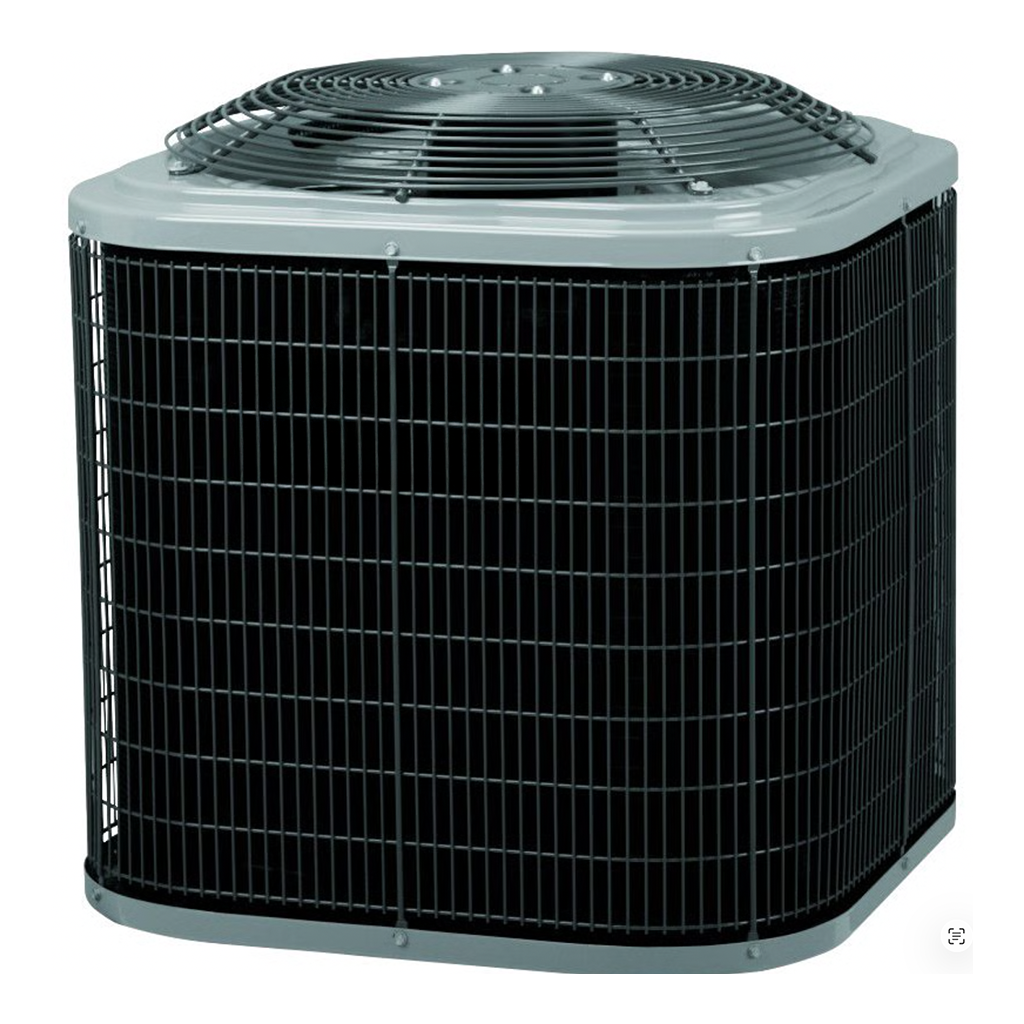

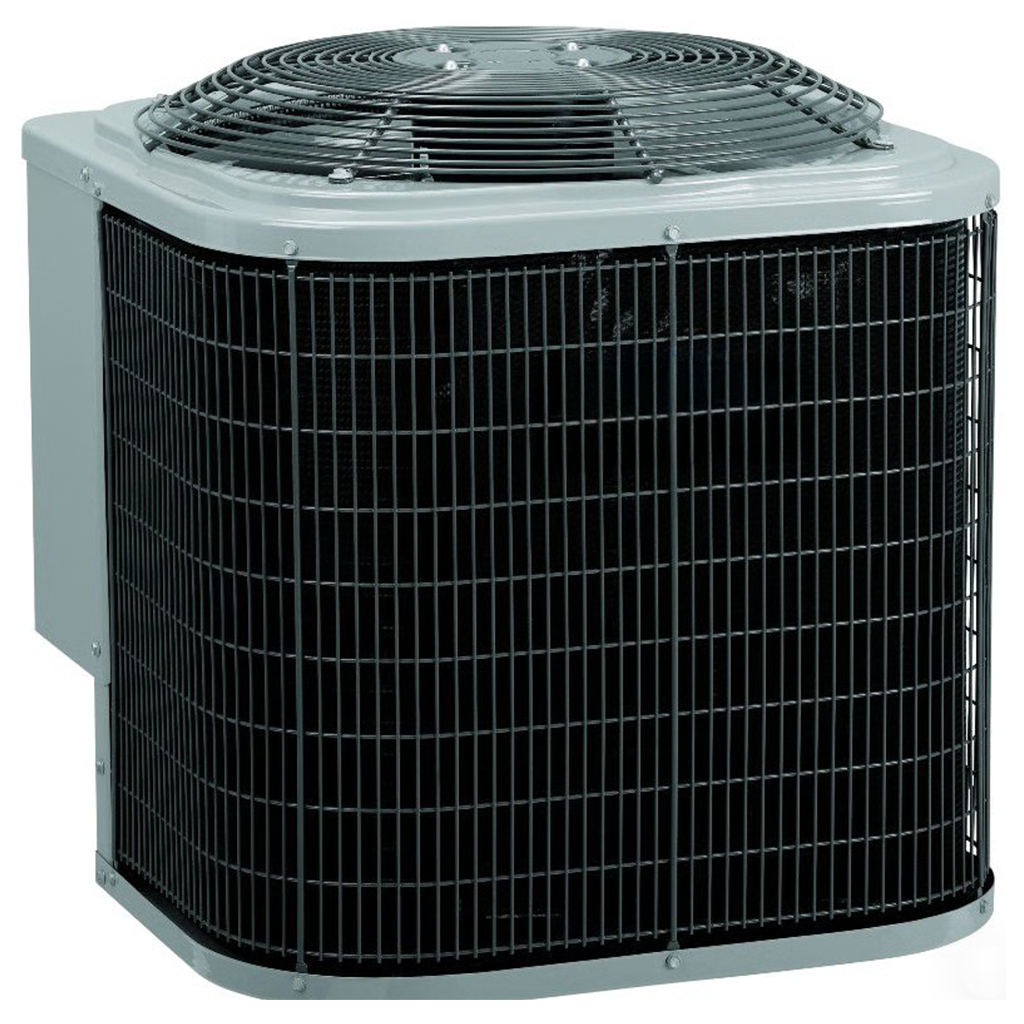

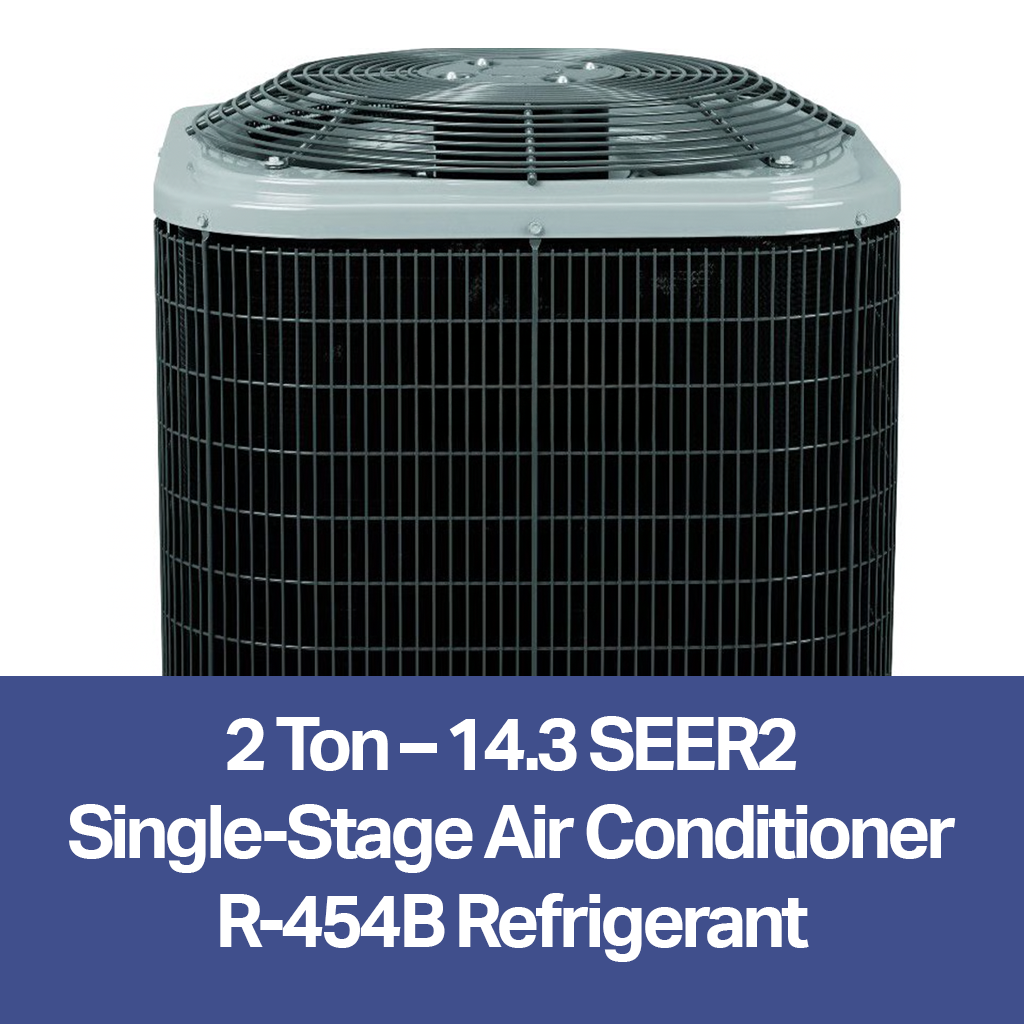

The R5A5S24AKAWA is a 2-ton, 14.3 SEER2 air conditioner designed for reliable, efficient cooling performance. Built for durability and easy service, this single-stage system provides consistent comfort in residential applications.

Features a high-efficiency scroll compressor, single-speed fan motor, and R-454B refrigerant for modern compliance and dependable operation.

Pair with a compatible indoor coil or air handler for full system performance.

Key Features:

Cooling Capacity: 24,000 BTU (2 Ton)

SEER2: 14.3

EER2: 11.7

Refrigerant: R-454B (Low-GWP, environmentally friendly)

Voltage: 208/230V, Single Phase

Motor Type: PSC

Min. Circuit Amps: 13.6

Max. Fuse Size: 20A

Liquid Line Connection: 3/8”

Suction Line Connection: 3/4”

Cabinet Dimensions (W x H x D): 31.2” x 35” x 31.2”

Weight: 142 lbs
