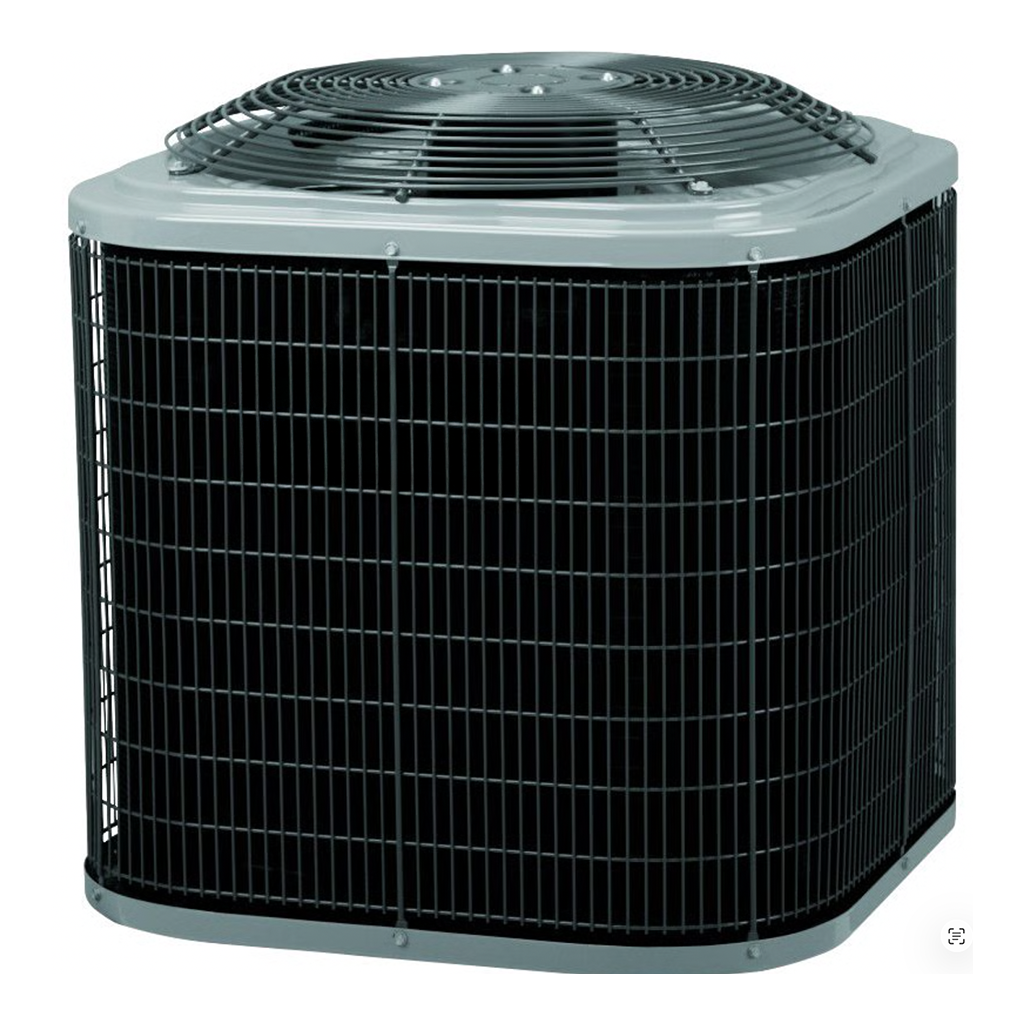

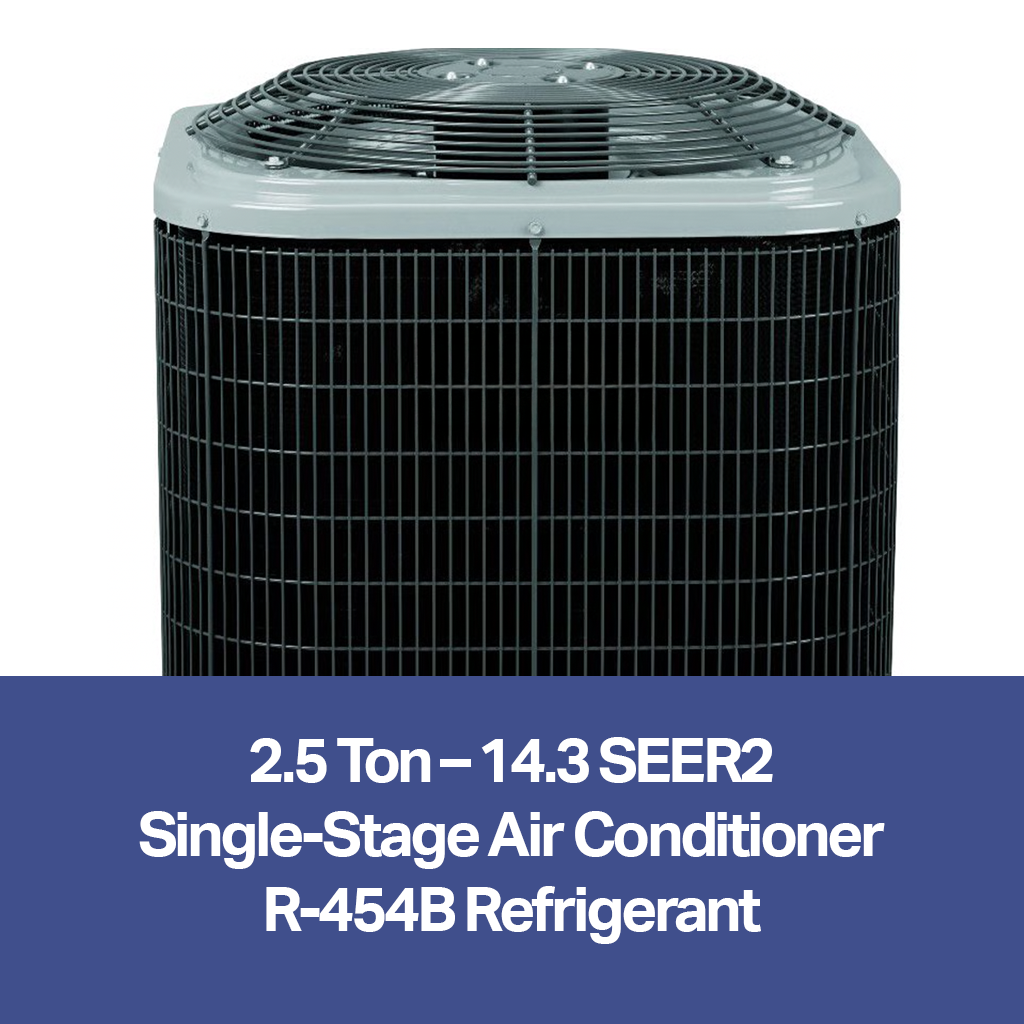

2.5 Ton – 14.3 SEER2 – Single-Stage Air Conditioner (R-454B Refrigerant) | R5A5S30AKAWA
$2,487.00 $3,374.00

The R5A5S30AKAWA is a 2.5-ton, 14.3 SEER2 air conditioner designed for dependable, efficient cooling performance. Featuring a single-stage scroll compressor and durable cabinet design, this unit delivers reliable comfort while meeting modern refrigerant standards with R-454B.

Built for residential applications, it operates on 208/230V single-phase power and uses a PSC fan motor for consistent operation. Pair with a matching indoor coil or air handler to achieve full system efficiency.

Key Features:

Cooling Capacity: 30,000 BTU (2.5 Ton)

SEER2: 14.3

EER2: 11.7

Refrigerant: R-454B (Low-GWP, environmentally responsible)

Voltage: 208/230V, Single Phase

Motor Type: PSC

Min. Circuit Amps: 16.5

Max. Fuse Size: 25A

Liquid Line Connection: 3/8”

Suction Line Connection: 3/4”

Cabinet Dimensions (W x H x D): 31.2” x 38.4” x 31.2”

Weight: 148 lbs
