Understanding Furnace Error Codes: What Every Blinking Light Means

It's 2 AM in January. Your house is getting cold. You stumble down to the furnace and see a little LED blinking in a pattern. That blinking light is your furnace trying to tell you exactly what's wrong — if you know how to read it. This guide covers the most common furnace error codes across major brands, with a focus on Goodman models, so you can diagnose the problem before calling anyone.

How Furnace Error Codes Work

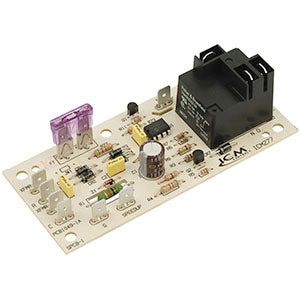

Modern furnaces have an integrated control board — essentially a small computer that monitors every component in the system. When something goes wrong, the control board shuts down the furnace for safety and communicates the problem through a blinking LED light visible through a small window on the furnace cabinet. The LED blinks in specific patterns: a certain number of slow blinks, fast blinks, or combinations that correspond to specific fault codes.

Most furnaces use a two-color LED system (red and green) or a single LED with different blink patterns. The key is counting the number of blinks, noting any pauses between blink groups, and matching that pattern to your furnace's code chart — which is usually printed on a sticker inside the blower compartment door.

Goodman Furnace Error Codes Explained

Goodman furnaces (along with Amana and Daikin units made in the same Houston factory) use a standardized LED code system. Here's what each pattern means and what you can do about it:

Steady ON (No Blinking)

A steady, non-blinking LED means the control board has power and is in standby mode — no call for heat. This is normal when your thermostat isn't calling for heat. If your thermostat IS calling for heat and you see a steady light, check the thermostat wiring and make sure the R and W terminals are making good contact.

1 Blink — System Lockout

One blink indicates the furnace has locked out after multiple failed ignition attempts. The system tried to light 3-4 times and failed each time. This is a safety lockout. To reset, turn the furnace off at the thermostat or circuit breaker for 30 seconds, then back on. If it locks out again, you likely have an ignition problem — bad igniter, dirty flame sensor, or gas valve issue.

2 Blinks — System in Soft Lockout / Pressure Switch Error

Two blinks typically indicate a pressure switch fault. The pressure switch verifies that the inducer motor is creating proper draft before allowing gas to flow. Common causes: blocked flue pipe (check for ice or bird nests), failed inducer motor, cracked pressure switch hose, or a bad pressure switch. In Minnesota winters, a frozen exhaust vent is the most common culprit — go outside and check if the PVC exhaust pipe is blocked with ice.

3 Blinks — Pressure Switch Stuck Closed

Three blinks mean the pressure switch was already closed before the inducer motor started. This shouldn't happen — the switch should only close AFTER the inducer creates negative pressure. Usually caused by a stuck pressure switch diaphragm or water in the pressure switch hose. Replace the pressure switch or clear the hose.

4 Blinks — Open High Limit / Fuse

Four blinks indicate the high-limit safety switch has tripped. This means the furnace is overheating. The most common cause? A dirty air filter restricting airflow. Check your filter immediately. Other causes include a failed blower motor (not pushing enough air), blocked return air vents, or a dirty evaporator coil above the furnace reducing airflow.

5 Blinks — Flame Sensed Without Gas Valve Call

Five blinks mean the flame sensor is detecting flame when the gas valve shouldn't be open. This is a serious safety code. It could indicate a leaking gas valve or a faulty flame sensor giving false readings. Do not ignore this code — shut off the furnace and call a technician.

6 Blinks — Line Voltage Polarity or Grounding Problem

Six blinks indicate an electrical issue — typically reversed hot and neutral wires at the furnace or a missing ground. This can happen after electrical work in the house or if the furnace was recently moved. An electrician or HVAC tech needs to verify proper wiring at the furnace disconnect.

7 Blinks — Low Flame Signal

Seven blinks mean the flame sensor is detecting flame but the signal is weak. The furnace runs but may shut down prematurely. The fix is almost always a dirty flame sensor — a 5-minute cleaning with fine sandpaper or steel wool (see our flame sensor cleaning guide). If cleaning doesn't fix it, replace the flame sensor ($8-15 part).

Error Codes for Other Major Brands

Lennox Furnaces

Lennox uses a similar LED blink code system but with some brand-specific codes. A flashing red LED with 2 blinks often indicates a pressure switch issue, while 4 blinks typically means high-limit trip. Lennox's SLP98V and EL296V communicating furnaces display alphanumeric codes on a digital display — codes like E228 (ignition failure) or E270 (low flame). These digital displays make diagnosis easier but the furnaces cost significantly more upfront.

Carrier / Bryant Furnaces

Carrier and Bryant (same manufacturer) use two-digit blink codes. The LED flashes a first digit, pauses, then flashes a second digit. Code 13 (1 blink, pause, 3 blinks) means limit switch lockout. Code 31 means pressure switch didn't close. Code 34 means ignition failure. Their Infinity series uses a wall thermostat display for error reporting.

Trane / American Standard Furnaces

Trane and American Standard (same company) use a combination of red and green LEDs. Both LEDs on steady means normal operation. Red LED blinking with green off indicates a system fault, with the number of red blinks identifying the specific issue. Five red blinks, for example, typically indicates a flame rollout switch has tripped — a serious safety condition.

What To Do When You See an Error Code

Before calling anyone, try these steps in order:

Step 1: Write Down the Code

Count the blinks carefully. Watch for at least two complete cycles to make sure you have the right count. Note whether the LED is red, green, or alternating. Check the code chart on the inside of your furnace's blower door — it's the definitive reference for your specific model.

Step 2: Try a System Reset

Turn off the thermostat, wait 30 seconds, turn it back on. If the furnace starts normally, it may have been a one-time glitch. If the same code returns, you have a real problem that needs addressing.

Step 3: Check the Obvious Things

Before spending money on a service call, check these free and easy items: Is the air filter dirty? (Code 4 — high limit). Is the exhaust vent outside blocked with ice or snow? (Code 2 — pressure switch). Is the gas valve on? (Code 1 — ignition failure). Are all supply and return vents open and unblocked? (Code 4 — overheating).

Step 4: Know When to Call a Pro

Some codes require professional attention. Any code related to gas smell, flame without a call for heat (Code 5), or electrical issues (Code 6) should be handled by a licensed technician. Don't try to bypass safety switches or jump out wires — these safety devices exist to prevent fires, carbon monoxide exposure, and explosions.

When Error Codes Mean It's Time for a New Furnace

If you're seeing frequent error codes on a furnace that's 12+ years old, it's telling you something. Repeated lockouts, multiple component failures in the same season, and escalating repair bills are all signs that your furnace is reaching end-of-life. At some point, the math favors replacement over repair.

At Furnace Direct, we sell Goodman furnaces at factory-direct pricing — the same units contractors install, without the contractor markup. A new 96% AFUE Goodman furnace with a brand-new control board, gas valve, igniter, and all components means no more error code troubleshooting for years to come. We offer same-day delivery to the Twin Cities metro on orders before 3 PM CT, because when your furnace is flashing error codes in a Minnesota winter, time matters.
