Furnace Gas Valve Problems: Symptoms, Testing & When to Replace

Furnace Gas Valve Problems: Symptoms, Testing & When to Replace

Your furnace gas valve is one of the most critical safety components in your heating system. When it fails, your furnace either won't ignite at all or — worse — could create a dangerous situation. Minnesota homeowners dealing with -20°F nights can't afford to guess when their gas valve is acting up.

At Furnace Direct, we've seen hundreds of gas valve issues across Goodman, Lennox, Carrier, and other brands. Here's everything you need to know about diagnosing gas valve problems, testing procedures, and when replacement makes more sense than repair.

What Does a Furnace Gas Valve Do?

The gas valve controls the flow of natural gas (or propane) to your furnace burners. It's an electromechanical device that opens and closes based on signals from the control board. Modern gas valves are actually two valves in one — a redundant safety design where both valves must open for gas to flow. If either valve fails closed, no gas reaches the burners. If one fails open, the other keeps gas from flowing uncontrolled.

The gas valve also contains a pressure regulator that maintains consistent gas pressure to the burners regardless of fluctuations in your supply line. This is critical for proper combustion and efficiency — too much pressure wastes gas and creates excess heat, while too little causes incomplete combustion and potential carbon monoxide production.

Common Gas Valve Failure Symptoms

1. Furnace Won't Ignite

The most common symptom of a failed gas valve is a furnace that goes through its startup sequence — inducer motor runs, igniter glows — but never actually lights. The control board sends the signal to open the gas valve, but nothing happens. You might hear the inducer running and see the igniter glowing orange, then the system shuts down after a few attempts.

2. Delayed Ignition (Mini Explosions)

A gas valve that's slow to open can cause gas to accumulate in the combustion chamber before ignition. When it finally lights, you get a small explosion — a loud "boom" or "whomp" sound. This is dangerous and should be addressed immediately. Repeated delayed ignition can crack your heat exchanger.

3. Intermittent Operation

A gas valve with a failing solenoid coil may work sometimes and fail other times. The furnace lights normally on some cycles but fails to ignite on others. This intermittent behavior often worsens over time as the coil degrades further.

4. Gas Smell Without Ignition

If you smell gas near your furnace but it's not lighting, the gas valve may be stuck partially open or one of the redundant valves has failed. This is a safety emergency — turn off the gas supply immediately and call a professional.

5. Low Flame or Yellow Flame

When the gas valve's internal pressure regulator fails, it may deliver incorrect gas pressure to the burners. Low pressure creates weak, yellow flames instead of strong blue ones. This indicates incomplete combustion and potential carbon monoxide production.

How to Test a Furnace Gas Valve

Warning: Gas valve testing involves working near gas lines. If you smell gas at any point, stop immediately, leave the area, and call your gas company. These tests are for informational purposes — always prioritize safety.

Voltage Test

The most reliable DIY test is checking whether the gas valve is receiving voltage from the control board. With the furnace in its ignition sequence (inducer running, igniter glowing), use a multimeter set to AC volts on the gas valve terminals. Most 24V gas valves should read between 24-28 VAC when the control board signals them to open. If you're getting proper voltage but the valve isn't opening, the valve itself has likely failed.

Resistance Test

With the furnace powered off, you can test the gas valve solenoid coils for proper resistance. Disconnect the wires and measure across the terminals with your multimeter set to ohms. Most Honeywell and White-Rodgers gas valves should read between 40-80 ohms. An open reading (infinite resistance) means the coil is burned out. A very low reading (near zero) indicates a shorted coil.

Gas Pressure Test

This requires a manometer and should typically be done by a licensed technician. The test measures inlet gas pressure (should be 7" WC for natural gas) and outlet/manifold pressure (typically 3.2-3.5" WC for natural gas). If inlet pressure is good but outlet pressure is wrong, the valve's internal regulator has failed.

Gas Valve Replacement Cost

Repair vs. Replace: When to Get a New Furnace Instead

A gas valve replacement on a newer furnace (under 12 years old) usually makes sense. But if your furnace is 15+ years old and the gas valve fails, consider the bigger picture. Gas valve failure in an aging furnace often signals broader wear — the heat exchanger, inducer motor, and control board are all approaching end-of-life too.

Here's our rule of thumb: if the repair costs more than 50% of a new furnace, replace it. A new Goodman 96% AFUE furnace from Furnace Direct starts around $1,200-1,800 for the unit — that's factory-direct pricing without contractor markup. When you factor in improved efficiency (going from an 80% furnace to 96%), the new unit often pays for itself within 3-5 Minnesota winters through lower gas bills.

Common Gas Valve Part Numbers

If you're sourcing your own gas valve, here are the most common ones we see in Minnesota homes:

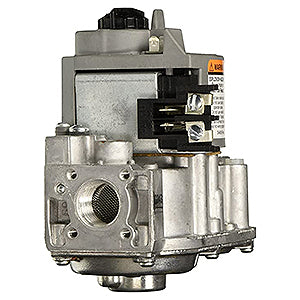

• Honeywell VR8205H: Found in many Goodman, Amana, and Janitrol furnaces
• Honeywell VR8304M: Common in Carrier, Bryant, and Payne units

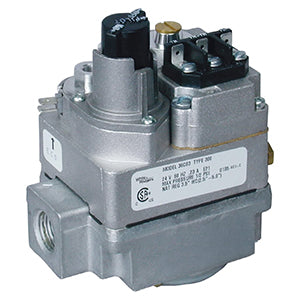

• White-Rodgers 36G: Used in Trane, American Standard, and some Lennox models
• White-Rodgers 36J: Found in older Rheem and Ruud furnaces
• Robertshaw 7200ERCS: Universal replacement for many brands

Always match the valve type (natural gas vs. propane), voltage, and pipe size when replacing. Using the wrong valve can create serious safety hazards.

Prevention: Keeping Your Gas Valve Healthy

Gas valves don't require direct maintenance, but you can extend their life by keeping the rest of your furnace in good shape. Change your air filter regularly — a clogged filter causes the furnace to cycle excessively, which wears out the gas valve solenoid faster. Keep the area around your furnace clean and free of dust, which can contaminate the valve internals. And schedule annual furnace tune-ups that include a gas pressure check — catching a failing regulator early prevents bigger problems.

The Bottom Line

Gas valve problems are one of the most common furnace repairs in Minnesota. If your furnace won't ignite despite a working igniter and inducer, the gas valve is a prime suspect. For furnaces under 12 years old, replacement is straightforward and cost-effective. For older units, compare the repair cost against a new high-efficiency Goodman furnace at factory-direct pricing from Furnace Direct — you might be surprised how affordable an upgrade can be, especially with same-day delivery to the Twin Cities metro area.
