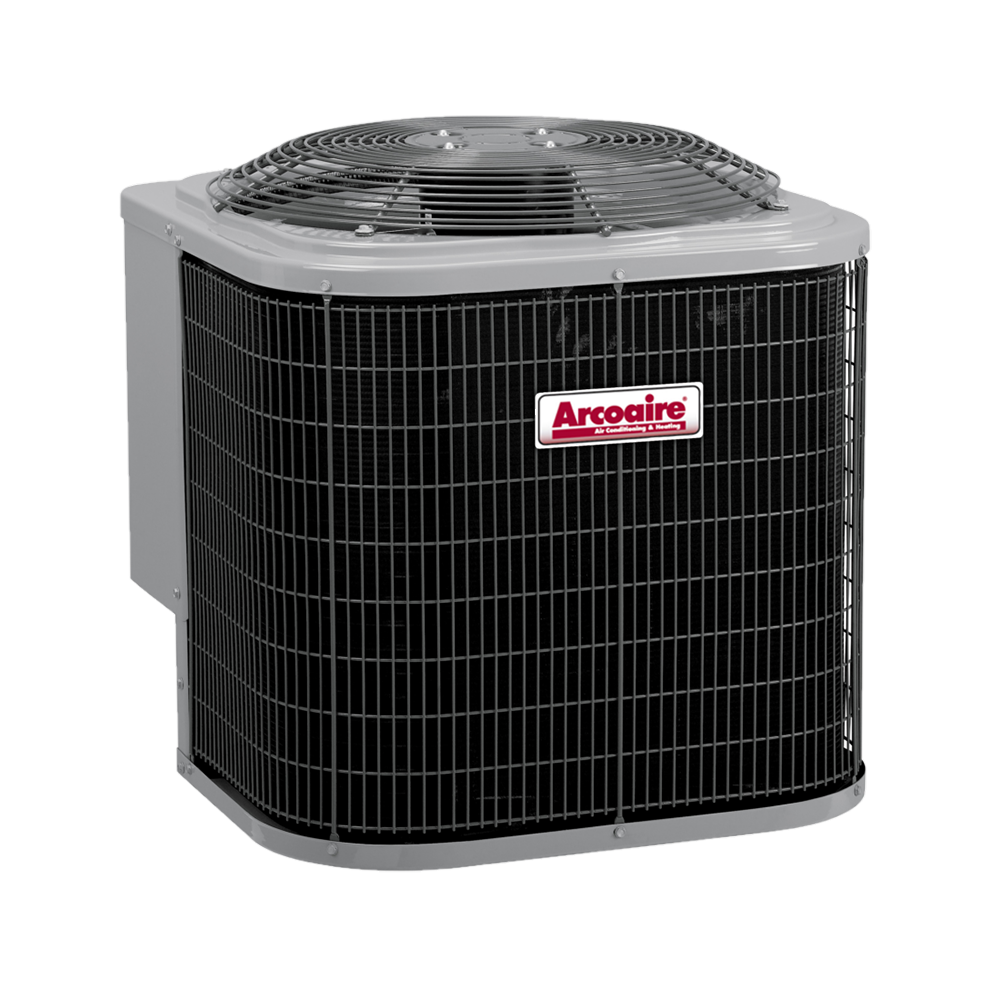

Arcoaire 4 Ton Performance Air Conditioner Condenser — R-454B | N5A4S48AKANA
About this product
A Performance single-stage condenser running R-454B, the current low-GWP refrigerant. Ships nationwide. Pair it with an AHRI-certified coil match for your region - the certified combinations are listed below.
Specifications
| Model | N5A4S48AKANA |
|---|---|
| Series | Performance Central Air Conditioner |
| Nominal capacity | 4 ton |
| Rated cooling | 46,000 BTU/h |
| SEER2 (series, up to) | Up to 16 |
| EER2 (series, up to) | Up to 13.5 |
| Sound level | As low as 72 dB |
| Compressor | Single-stage scroll |
| Refrigerant | R-454B |
| Warranty | 10-Year Parts Limited Warranty with timely registration (5-year if not registered within 90 days) |
AHRI-certified matches
| Indoor coil | Furnace | SEER2 | AHRI ref | Where it can be installed |
|---|---|---|---|---|
| EAM5X61M24A | F96VTN0801716B | 14.3 | 217791397 | All 48 states |
| EAM5X61M24A | N96VSN0801716B | 14.3 | 217791201 | All 48 states |
| EAM5X61M24A | F96VTN0801716B | 14.3 | 216304908 | All 48 states |
| EAM5X61M24A | N96VSN0801716B | 14.3 | 216304525 | All 48 states |
| EAM5X61M24A | F96VTN0801716B | 14.3 | 217777403 | All 48 states |
| EAM5X61M24A | N96VSN0801716B | 14.3 | 217777240 | All 48 states |
| EAM5X61M24A | F96VTN0801716B | 14.3 | 217807192 | All 48 states |
| EAM5X61M24A | N96VSN0801716B | 14.3 | 217807044 | All 48 states |
| EVM5X60M24A | F96VTN1002122B | 14.3 | 217802399 | All 48 states |
| EVM5X60M24A | F96VTN1002122B | 14.3 | 216326351 | All 48 states |
| EVM5X60M24A | F96VTN1002122B | 14.3 | 217786374 | All 48 states |
| EVM5X60M24A | F96VTN1002122B | 14.3 | 217815320 | All 48 states |
83 certified combinations total; the 12 most common are shown.
Certified efficiency depends on the exact condenser, coil and furnace combination. Every system we quote is an AHRI-certified match, and the certified rating for your combination is listed on the quote.
About the brand
Arcoaire is built by International Comfort Products, a Carrier Global company. It shares engineering, components and manufacturing with Carrier equipment.
Specifications
| Brand | Arcoaire |
| Serial Number | N5A4S48AKANA |
| Type | Condenser |
| Warranty | 10-Year Manufacturer (Parts) |
| Shipping | Free pallet freight |
