Furnace No-Heat Ignition Repair Kit — Universal Igniter + Flame Sensor
About this product
The two parts that cause almost every "furnace runs but never lights" call, in one box. If your inducer starts and the blower runs but you never get flame, the igniter and the flame sensor are the first two things a technician checks — and they are usually replaced together, because a furnace that has been short-cycling on a failing sensor has already been hard on the igniter.
What is in the kit

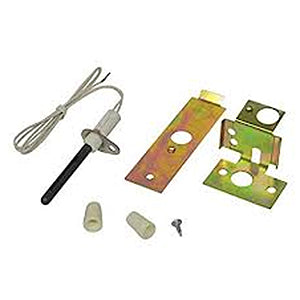

- Universal silicon nitride hot surface igniter kit (M68040) — 120V, replaces over 75 igniter variations. Includes mounting brackets, porcelain wire connectors, high-temp sleeving and mounting screws.
- Universal flame sensor (790-843A1) — use as-is, bend it or cut it to replace over 120 different flame sensors across furnaces, boilers and water heaters.
Why universal matters here
You do not need to match a model number. Both parts in this kit are designed to cover the overwhelming majority of residential gas furnaces, which is exactly why we are willing to sell them as a kit — unlike capacitors or filters, there is no rating or size to get wrong.
Before you start
Shut the power off at the breaker. Handle the igniter by its ceramic base only — the element cracks from finger oil and from being knocked against the burner assembly. Clean the flame sensor rod with fine abrasive cloth if you are reusing it; a sooted sensor produces the same symptom as a dead one.
Not sure this is your problem? Call (888) 762-1334. We are licensed HVAC contractors and would rather talk you out of the wrong part than sell it to you.
Specifications
| Kit Contents | Universal silicon nitride igniter kit (M68040) + universal flame sensor (790-843A1) |
| Igniter Coverage | Replaces 75+ igniter variations |
| Sensor Coverage | Replaces 120+ flame sensors |
| Voltage | 120V |
| Manufacturer Part Number | FD-KIT-IGN |
| Condition | New |
| Sold By | Furnace Direct (Hamlin Mechanical LLC, MN Lic. #128688) |
| Repair Difficulty | Easy — about 35 minutes |
| Tools You Need | 1/4" nut driver, screwdriver |
| Shipping | $9.98 flat, free over $75 — ships same business day when ordered by 2 PM CT |
| Returns | 90 days |
What this part does
The igniter lights the burners; the flame sensor proves the flame is actually there. If either one fails the furnace runs its inducer and blower and never delivers heat, so they are diagnosed and usually replaced together.
Replace it if you see any of this
- Furnace runs but never ignites
- Inducer starts, blower runs, no flame follows
- Furnace lights then shuts down after 3-10 seconds, repeatedly
- Control board flashes an ignition-failure or lockout code
- Igniter glows dim orange instead of bright white-orange
- Igniter is visibly cracked, chipped or blistered white
Will this fit my system?
This is part number FD-KIT-IGN
The number is printed on the part you are replacing — pull the old one and read it, or check the label inside the furnace door. If your number matches, this is the part.
Not sure which part failed? Start from the symptom, or call (888) 762-1334 before you order. We are licensed HVAC contractors and will confirm the right part for your model. Anything that does not fit comes back within 90 days.
Not sure this is the problem?
We have written repair and troubleshooting guides for this exact failure. Read the repair kits guides ›
Common questions
Do I need both parts, or just one?
Buy both. An ignition fault is diagnosed across the igniter and the sensor together, and a furnace that has been short-cycling on a weak sensor has already been hard on the igniter. Replacing one and having no heat two weeks later is the expensive outcome.
Will this fit my furnace?
Both components are universal by the manufacturers' own coverage: the igniter replaces over 75 variations and the sensor over 120. There is no model number to match. If you are unsure, call (888) 762-1334 before you order.
Can I do this myself?
Yes. It is an easy repair, about 35 minutes, with a 1/4" nut driver and a screwdriver. Shut the power off at the breaker first, and handle the igniter by its ceramic base only — the element cracks from finger oil.
How much would a contractor charge?
Most HVAC companies charge $250-350 for an igniter replacement and a similar range for a flame sensor, each including a service call. This kit is $109.95 and ships free.
How fast does this ship?
Orders placed by 2 PM CT typically ship the same business day. This kit is over the $75 threshold, so shipping is free.
What if it does not fix it?
Call us. We are licensed HVAC contractors and there are only a few things that produce a no-ignition fault. Return it within 90 days if it turns out not to be the problem.
