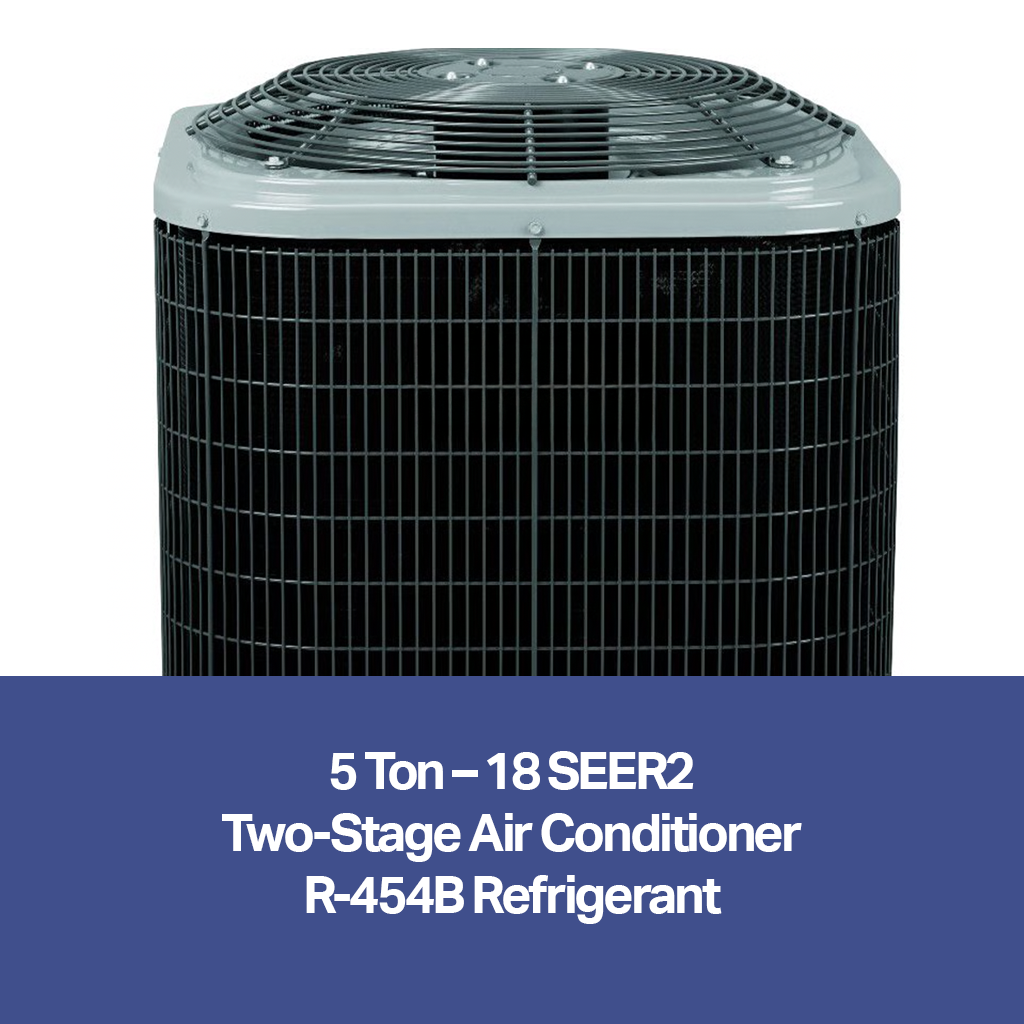

The N5A8T60AKAWA is a 5-ton, 18 SEER2 two-stage air conditioner engineered for high-efficiency cooling and dependable comfort. Featuring a two-stage scroll compressor and ECM fan motor, this unit delivers quiet operation, improved humidity control, and enhanced temperature precision.

Built for R-454B refrigerant systems, the N5A8T series meets the latest energy and refrigerant standards while providing long-term reliability for residential or light commercial applications.

Key Features:

Cooling Capacity: 60,000 BTU (5 Ton)

SEER2: 18

EER2: 14.0

Compressor Type: Two-Stage (high/low operation for maximum efficiency and comfort)

Refrigerant: R-454B (Low-GWP, environmentally responsible)

Voltage: 208/230V, Single Phase

Motor Type: ECM (Electronically Commutated Motor for superior efficiency and quiet performance)

Min. Circuit Amps: 30.5

Max. Fuse Size: 50A

Liquid Line Connection: 3/8”

Suction Line Connection: 7/8”

Cabinet Dimensions (W x H x D): 35” x 38-7/8” x 35”

Weight: 246 lbs
